A NEMA 14-50 outlet is a 240-volt, 50-amp, four-prong receptacle with two hot wires, a neutral and a ground, most often installed for electric vehicle charging, an RV hookup, or an electric range. It resembles a dryer outlet but carries more current on a different pin layout, so the two are not interchangeable.
What a NEMA 14-50 outlet is
The four prongs break down as two ungrounded, or hot, conductors, a grounded neutral, and an equipment ground. Because it carries two hots, a NEMA 14-50 outlet can deliver 240V to one large appliance, or 120V from either hot to the neutral for two separate loads, which is exactly how RV shore power uses it. The receptacle itself is rated 50A at up to 250V; the 14 in its name is simply NEMA’s configuration number for this four-wire pin pattern, not a voltage or amperage figure.

Wire gauge, breaker size and the 80% rule
A NEMA 14-50 outlet is fed by 6 AWG copper wire on a 50A, two-pole breaker, which keeps voltage drop under 3 percent out to roughly 150 feet at the full 50A, or about 180 feet at a 40A EV-charging load. Longer runs need a heavier gauge to keep voltage drop under 3 percent; some installers use 4 AWG aluminum instead of 6 AWG copper, sized up a step to offset aluminum’s lower conductivity. Our amps-to-watts calculator converts the outlet’s rating into watts for comparison against an appliance’s nameplate, and the watts-to-amps calculator works the other direction for a different appliance’s draw.
The NEC defines a continuous load in Article 100 as one whose maximum current is expected to last three hours or more, and Sections 210.19(A)(1) and 210.20(A) size the wire and breaker at 125 percent of that load, so a continuous load may only draw up to 80 percent of the breaker’s rating: 50A x 0.8 = 40A at 240V. That 40A figure, not the 50A stamped on the breaker, is the real ceiling for anything left running for hours, such as EV charging or a space heater plugged into the circuit.
Does a NEMA 14-50 outlet need GFCI protection
Under the 2020 and 2023 NEC, usually yes. Section 210.8(F) requires ground-fault circuit-interrupter protection for an outdoor outlet on a single-phase branch circuit rated 150V to ground or less and 50A or less, which covers a NEMA 14-50 outlet mounted outside or on a detached garage. Since the 2020 edition, Section 210.8(A)(2) has also required GFCI protection for 125-volt through 250-volt receptacles in every dwelling garage, and in accessory buildings with a floor at or below grade, so a 14-50 inside a home garage needs it too. Separately, NEC 625.54 requires GFCI protection for every receptacle installed for electric vehicle charging, wherever it is mounted; the ground-fault protection built into an EV charging cable, to UL 2231 or UL 2594, does not replace it. For a 50A receptacle that normally means a 50A two-pole GFCI breaker in the panel. A hardwired charger connects without a receptacle, so 625.54 does not apply to it. Each state and county adopts a new NEC edition on its own schedule and some still enforce the 2017 code, so confirm which rules apply with your local permit office and leave the work to a licensed electrician.
What a NEMA 14-50 outlet is used for

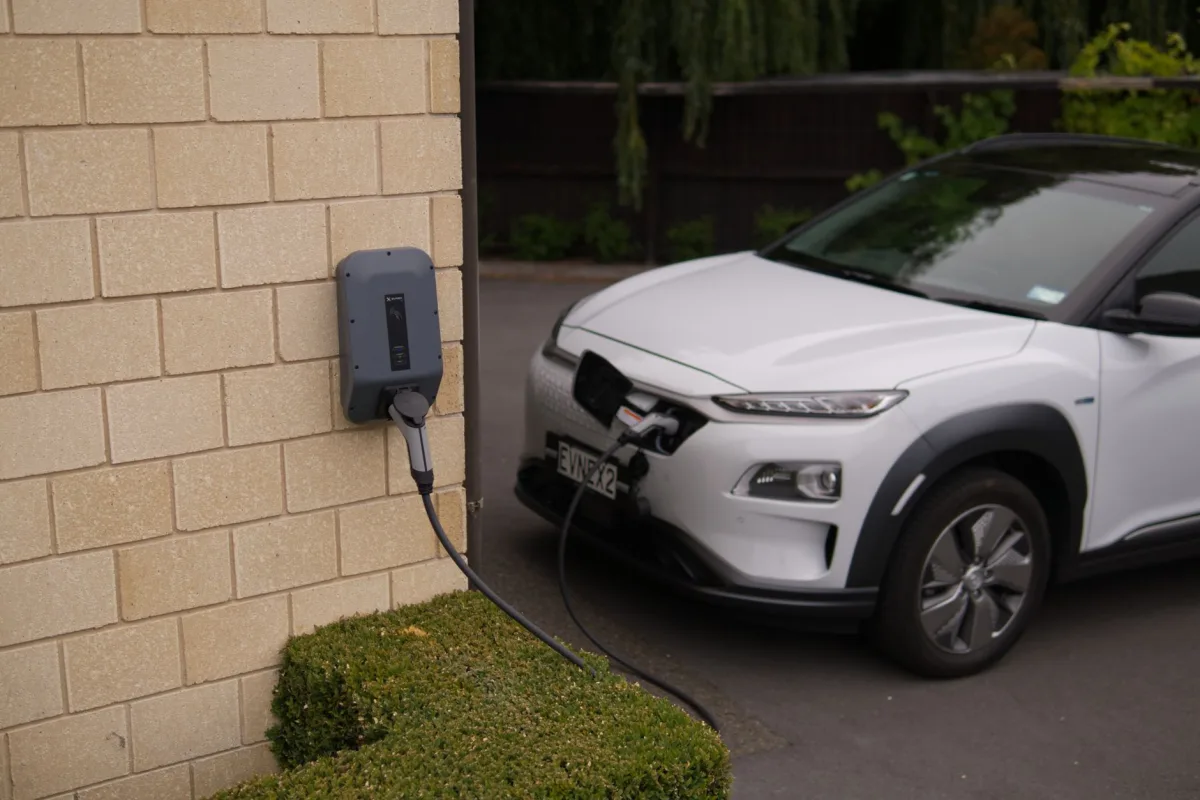

Electric vehicle charging is the most common reason homeowners add a NEMA 14-50 outlet today. A vehicle maker’s portable charging cable, connected through a NEMA 14-50 adapter, typically caps output at 32A at 240V for an added safety margin below the 40A continuous ceiling: 32A x 240V = 7,680W, or about 7.7kW. At 32A, Tesla’s charging-speed table lists up to 30 miles of range per hour for a Model 3 or Model Y and 20 for a Cybertruck. The EPA rates the 2025 Ford F-150 Lightning at 47 to 51 kWh per 100 miles on fueleconomy.gov, which works out to about 15 to 16 miles of range per hour at the same 7.7kW. A hardwired Level 2 charger on the same size circuit can draw the full 40A continuously for faster charging, but it is separate listed equipment, not a plug-in adapter.
RV parks and driveways use the same receptacle for what campers call 50-amp service, and that name causes real confusion: it is not one 240V circuit. The two hot legs feed the RV’s power center as two independent 120V, 50A circuits sharing a neutral, so the coach gets up to 100A of 120V power split across two panels rather than 50A at 240V. That’s why an RV’s 120V air conditioners and outlets work normally when plugged into a 14-50 pedestal. More on wiring a whole setup is in our off-grid RV power guide.
Electric ranges and ovens have long used a NEMA 14-50 outlet, or the older three-prong 10-50, because nameplate ratings up to 12,000W were common, even though thermostatically cycled heating elements rarely draw the full 50A continuously. Arc welders are the other frequent user: a 240V stick or MIG welder’s duty cycle keeps its average draw well under its peak, so the welder’s own nameplate amperage, not a continuous-load calculation, sets the breaker size.
NEMA 14-50 vs 14-30 vs 6-50
All three receptacles run at 240V, which is why they get confused, but they are not interchangeable. The detail that matters most is whether a neutral wire is present: without one, a receptacle can only feed 240V-only loads. For comparison, the smaller 14-30 dryer circuit is covered in our dryer wattage guide.
| Feature | NEMA 14-50 | NEMA 14-30 | NEMA 6-50 |
|---|---|---|---|
| Amperage | 50A | 30A | 50A |
| Voltage | 120V/240V | 120V/240V | 240V only |
| Conductors | 2 hot, neutral, ground | 2 hot, neutral, ground | 2 hot, ground (no neutral) |
| Copper wire size | 6 AWG | 10 AWG | 6 AWG |
| Typical breaker | 50A two-pole | 30A two-pole | 50A two-pole |
| Common use | EV charging, RV shore power, ranges | Electric clothes dryers | Arc welders, air compressors, some older EV adapters |
Outlet or hardwired charger?
Tesla’s home charging page sets out the outlet-versus-hardwired trade-off for its own equipment:
| Setup | Breaker | Charging current | Tesla’s listed range per hour, Model 3 or Model Y | Tesla install estimate |
|---|---|---|---|---|
| Mobile Connector with NEMA 14-50 adapter | 50A | 32A | Up to 30 miles | $0 with an approved existing outlet; $750 to $1,500 for a new one |
| Wall Connector, hardwired | 50A | 40A | Up to 37 miles | $750 to $1,500 |
| Wall Connector, hardwired | 60A | 48A | Up to 44 miles | $750 to $1,500 |
Tesla calls the Wall Connector its recommended home charging solution, citing faster charging, scheduling and charging statistics. The extra speed only counts for a vehicle that accepts more than 32A: Tesla lists the Model 3 Rear-Wheel Drive and the Model Y Rear-Wheel Drive and All-Wheel Drive at a 32A maximum, up to 30 miles per hour, from either setup. The outlet fits better if an installer-approved 240V outlet is already where you park, which avoids the installation cost, or if it also has to serve an RV.
Check the panel before adding the circuit
A new 50A two-pole breaker needs room in the panel and enough spare capacity to carry the load. The Department of Energy’s Alternative Fuels Data Center notes that some homes lack the capacity for Level 2 charging; an electrician can check yours and add circuits if needed. The NEC treats EV charging as a continuous load, which is why the 80 percent rule above applies, and Article 625 holds most of its charging-equipment rules. A permit may be required, and in many areas a site installation plan must be approved before work starts. AFDC recommends safety-certified chargers, such as ENERGY STAR certified models, which are tested by a nationally recognized testing laboratory.
What it costs to install a NEMA 14-50 outlet
Tesla estimates $750 to $1,500 to install a new 240V outlet, the same as for hardwiring a Wall Connector. Its certified installers’ standard price covers labor, materials, the permit, inspection and an installation warranty; a long wire run, an additional panel, trenching, a main panel upgrade, a pedestal or hiding cable behind walls adds to it. Panel work is also worth weighing against the scope of a full whole-house battery backup if you’re considering bigger electrical work at the same time.
Hire a licensed electrician
None of this is a do-it-yourself panel job. Sizing the breaker correctly, running new circuit conductors into a live panel, and confirming grounding, GFCI and permit requirements is exactly the work a licensed electrician is trained and insured to do safely. Never attempt wiring inside an electrical panel yourself. If you’re adding backup power with a generator rather than a battery, don’t connect it to a NEMA 14-50 outlet or any household circuit by back-feeding; that bypasses the utility disconnect and can injure utility workers, and it requires a listed transfer switch installed by a licensed electrician instead. Run any generator outdoors only, at least 20 feet from the home with the exhaust pointed away from windows, doors and vents, and never in a garage, even with the door open, because it produces carbon monoxide. CPSC also advises working CO alarms, battery-operated or with battery backup, on every level of the home.
Frequently asked questions
Is a NEMA 14-50 outlet 120V or 240V?
Both are present. There is 240V between the two hot pins, and 120V from either hot pin to the neutral pin, which is how an RV pedestal splits the outlet into two separate 120V, 50A circuits.
Can I plug a Tesla or another EV directly into a NEMA 14-50 outlet?
Not directly. You need the vehicle maker’s portable charging cable with a NEMA 14-50 adapter, which typically limits output to around 32A, about 7.7kW, at 240V, below the circuit’s 40A continuous limit.
What is the difference between a NEMA 14-50 and a 6-50 outlet?
A 6-50 has no neutral pin, just two hots and a ground, so it can only feed 240V-only loads like a welder. A 14-50 adds the neutral, which lets it also supply 120V loads, the reason RVs and most EV charging adapters use the 14-50 rather than the 6-50.
Does a NEMA 14-50 outlet need a GFCI breaker?
Usually yes. Since the 2020 NEC, a 14-50 needs GFCI protection in any dwelling garage under Section 210.8(A)(2), outdoors under Section 210.8(F), and anywhere it is installed for EV charging under Section 625.54. The ground-fault protection built into an EV charging cable does not replace it; the usual answer is a 50A two-pole GFCI breaker. Local adoption of NEC editions varies, so confirm with your permit office and have a licensed electrician do the work.
How much does it cost to add a NEMA 14-50 outlet?
Tesla estimates $750 to $1,500 to install a new 240V outlet, and says a standard installation price includes the permit and inspection. A long wire run, trenching or a main panel upgrade adds to that.
